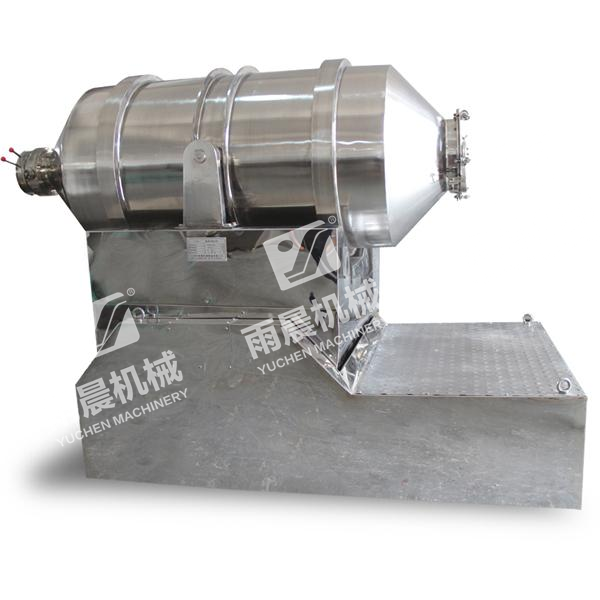

The YGH series rock mixer is developed by our company based on advanced foreign mixers through certain improvements. It is a rock mixer that is more suitable for China's national conditions. Its cylindrical material cylinder is equipped with four stirring blades, which rotate around its central axis x-x 'while also making a "reversible" swing motion around the horizontal axis y-y', forcing the material inside the cylinder to mix both diffusion and movement. Short mixing time and high uniformity.
Main technical parameters.
model
Mixing bucket volume
Maximum loading capacity
Maximum loading weight
Rotary motor power
Shake motor
External dimensions
Serious matters
YGH-150
150
75
45
0.37
0.75
915x1156X1477
250
YGH-300
300
150
90
0.75
1.1
1010x1355x1570
400
YGH-600
600
300
180
1.5
1.5
1280x1790x2060
800
YGH-800
800
400
240
1.5
1.5
1420x2300x2100
1000
YGH-1000
1000
500
300
1.5
2.2
1520x2640x2270
1200
YGH-2000
2000
1000
600
4
4
1680x2800x2530
2500
YGH-3000
3000
1500
900
4
5.5
1860x3200x2780
3000
YGH-5000
5000
2500
1500
7.5
7.5
2200x4200x3400
4500
YGH-6000
6000
3000
1800
7.5
7.5
2260x4700x3580
5000
YGH-8000
8000
4000
2400
11
11
2440x5200x3800
6500
YGH-10000
10000
5000
3000
11
11
2600x5600x4000
8000
YGH-15000
15000
7500
4500
15
15
2900x6000x4500
12000
YGH-20000
20000
10000
6000
22
18.5
3200x6500x5000
16000
YGH-30000
30000
15000
9000
30
30
3660x7800x5700
22000
